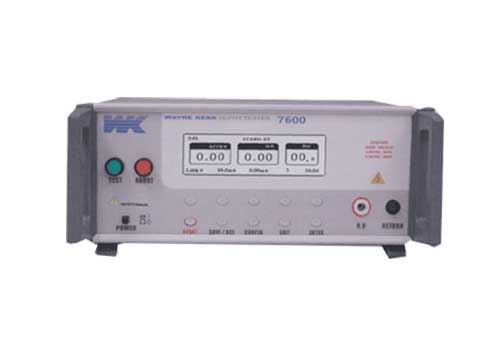

概述：产品详情 产品特点： ‧可设定缓升时间 ‧可设定连续测试步骤 ‧内建PLC Remote 可程序遥控接口 ‧三种测试功能可供选择 ‧绘图型LCD窗口 ‧内建RS-232可与计算机联机 ACWithstand Item Ran
189-1555-2414
|
AC Withstand |
||||
|
Item |
Range |
Resolution |
Accuracy |
|
|
输出电压 |
100V ~ 5000V |
10 |
±(3% of setting+5V) |
|
|
输出频率 |
50/60Hz |
|
±100ppm |
|
|
上限判断值 mA |
0.001 ~ 10 |
0.001 |
±3% |
|
|
下限判断值 mA |
0 ~ 9.999 |
0.001 |
±3% |
|
|
测试时间 |
0.1 ~ 99.9s |
0.1 |
|
|
|
上升时间 |
0.1 ~ 99.9s |
0.1 |
|
|
|
电弧侦测 |
1 ~ 9 |
|
|
|
|
DC Withstand |
||||
|
Item |
Range |
Resolution |
Accuracy |
|
|
输出电压 |
100V ~ 6000V |
10 |
±(3% of setting+5V) |
|
|
上限判断值 mA |
0.001 ~ 5 |
0.001 |
±3% |
|
|
下限判断值 mA |
0 ~ 4.999 |
0.001 |
±3% |
|
|
测试时间 |
0.1 ~ 99.9s |
0.1 |
|
|
|
上升时间 |
0.1 ~ 99.9s |
0.1 |
|
|
|
电弧侦测 |
1~9 |
|
|
|
|
Insulation Resistance |
||||
|
Item |
Range |
Resolution |
Accuracy |
|
|
输出电压 |
100 ~ 1000Vdc |
10 |
±(3% of setting+5V) |
|
|
测试时间 |
0.1 ~ 9.99s |
0.1 |
|
|
|
上升时间 |
||||
|
上限判断值 MΩ |
1 ~ 9999 |
1 |
100 ~ 500V, 1 ~ 1000MΩ (±5%) |
|
|
下限判断值 MΩ |
0 ~ 9998 |
1 |
||
|
General |
||||
|
Item |
Range |
|||
|
内存 |
30 Sets |
|||
|
PLC Remote Control |
Test, Abort |
|||
|
PLC Single Output |
Pass, Fail, HV output |
|||
|
LCD 显示器 |
128*64 graphic LCD |
|||
|
测试项目 |
AC, DC, IR |
|||
|
外观及重量 |
435(W)*180(H)*455(D)mm, 15kgs |
|||
|
操作温湿度 |
5 ~ 40ºC, RH 0 ~ 80% |
|||
|
输入电源 |
115/230Vac ± 15%, 50/60Hz ± 5% |
|||
|
测试点数 |
7600 |
2 channels |
||
|
7620 |
8 channels |
|||
|
7621 |
8 channels |
|||
